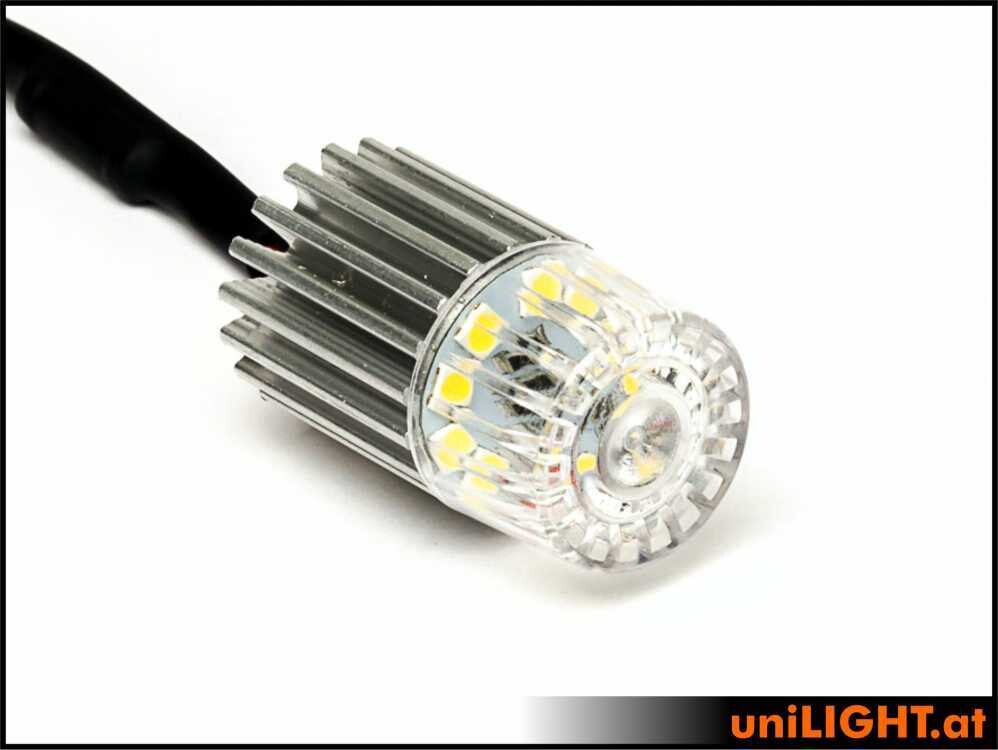

Navigation light with a 19mm diameter! The

multi-chip design delivers exceptional light output in a compact package with minimal heat dissipation.

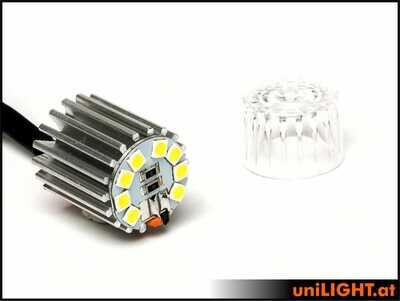

The new round lights come with a snap-on 19 mm cap made of highly transparent polycarbonate. The faceted cap ensures perfect light distribution across the entire horizon; without the cap, installation is very easy in edge arches and pre-fabricated cutouts.

Technical Specifications:

• Electrical: 5W reference power with x2 technology, 8V/12V, 0.45A
• Beam angle: 180°
• Luminous intensity: ~150 lumens RED
• Luminous intensity: ~250 lumens GREEN
• Luminous intensity: ~380 lumens WHITE
• Dimensions: D19x32mm
• Weight: 7g (without cable)

Delivery:

Includes a 1m silicone connection cable, ready to connect to an 8V/2S LiPo. Pre-assembled with a high-quality polycarbonate cap, includes a shunt resistor for operation with a 12V/3S LiPo.

Notes:

Reference performance data is purely for comparison between the offered lights. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light, operating mode, and technology.

Pay attention to the operating temperature; we cannot assume liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
