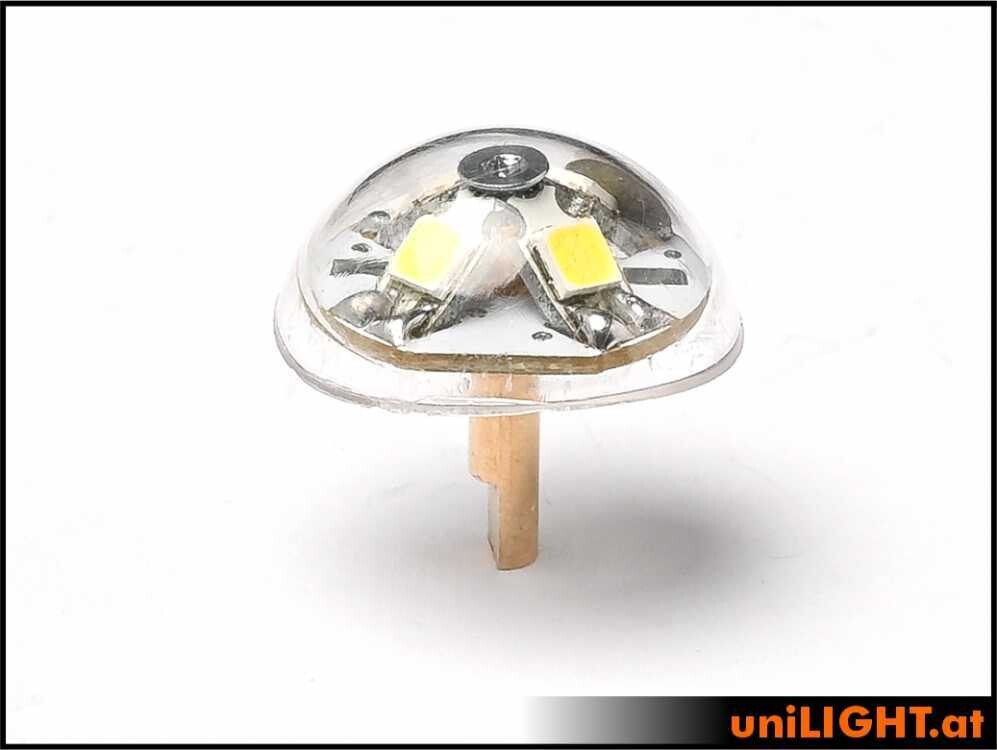

True hemispherical light in a dome shape, true illumination across the entire hemisphere with a diameter of just 17 mm!

A dome light with a completely new, flat design to achieve the full beam angle in half-space (>2π sr). The aluminum construction can only be operated with short strobe signals without additional cooling; an optional heat sink is included. The cap is pre-shaped for direct mounting on a round fuselage ridge and can be further adjusted with a knife or scissors. The standard chip configuration allows a duty cycle of 10–15%. The optional heat sink is attached to the LED trapezoidal assembly using the included screw and a drop of superglue.

Technical Specifications:

• Electrical: 9W reference power with x2 technology, 8V/12V, 0.75A
• Beam angle: 360°
• Luminous intensity: ~240 lumens RED
• Luminous intensity: ~670 lumens WHITE
• Luminous intensity: ~450 lumens GREEN

Package includes:

Includes a 1m silicone connection cable, ready to connect to an 8V/2S LiPo. Includes a screw and a brass pin as a heat sink to be glued together (CA). Additional resistor for operation with 12V/3S LiPo.

Notes:

Reference performance data is purely a comparative value between the offered lights. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light, operating mode, and technology.

Pay attention to the operating temperature; we cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
