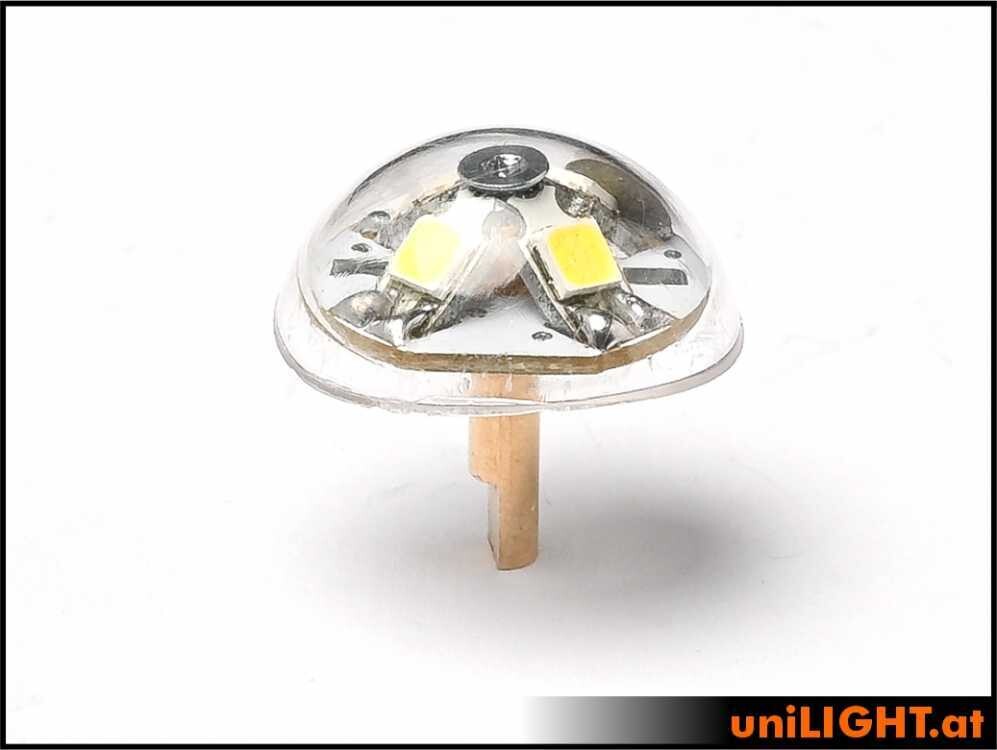

True hemispherical light in a dome shape, providing true illumination across the entire hemisphere with a diameter of just 17 mm!

A dome light featuring a completely new, flat design to achieve a full beam angle in half-space (>2π sr). The aluminum construction can only be operated with short strobe signals without additional cooling; an optional heat sink is included. The cap is pre-shaped for direct mounting on a round fuselage ridge and can be further adjusted with a knife or scissors. Featuring a new generation of LED chips, this very small strobe light is also available in a POWER version with 15W and 1100 lumens. However, due to their power output, these must not exceed a duty cycle of 5–10%. The optional heat sink is attached to the LED trapezoidal assembly using the included screw and a drop of superglue.

Technical Specifications:

• Electrical: 15W reference power with x2 technology, 8V/12V, 1.25A
• Beam angle: 360°
• Luminous intensity: ~1100 lumens WHITE

Delivery:

Includes a 1m silicone connection cable, ready to connect to an 8V/2S LiPo. Includes a screw and a brass pin as a heat sink to be glued together (CA). Additional resistor for operation with 12V/3S LiPo.

Notes:

Reference performance data is purely a comparative value between the offered lights. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light, operating mode, and technology.

Pay attention to the operating temperature; we cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
