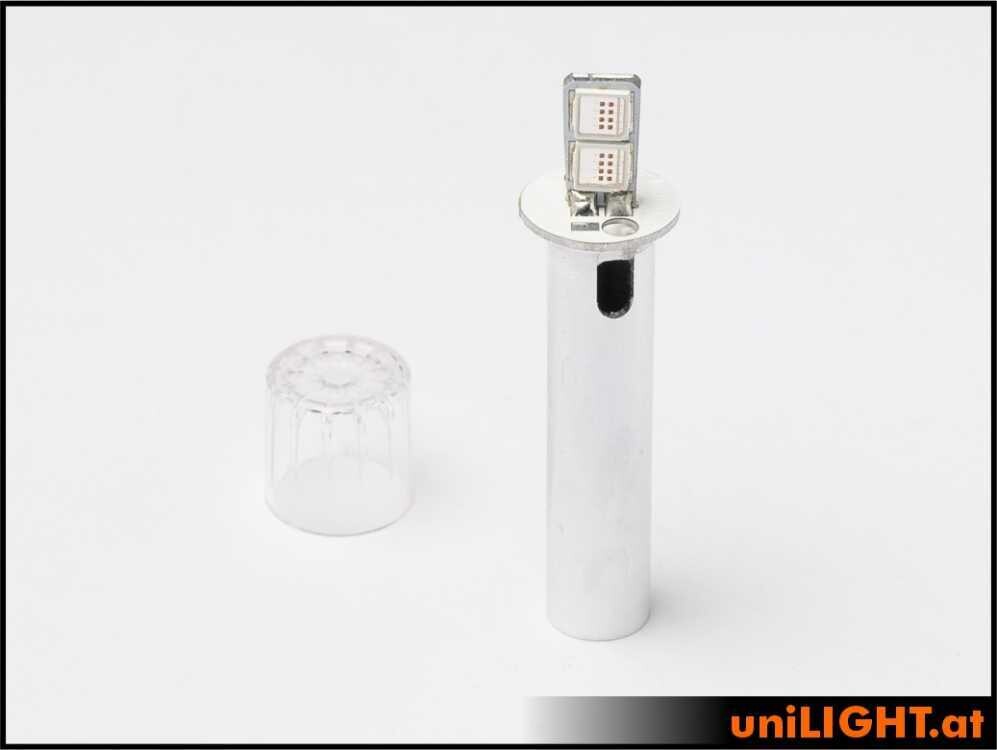

High-performance LED strobe light with a 24W reference power rating for use as a strobe on a wide variety of models. The unique design of the LEDs allows for optimal side-ward light dispersion while maintaining a compact form factor. The pin-mounted light is delivered pre-assembled and ready for use on a CNC-machined aluminum heat sink, and includes a high-strength 15mm polycarbonate cover.

The cap must be attached separately and can also be partially painted to match the model’s color. Any non-evaporating adhesive such as epoxy, Uhu Allplast, Uhu Por, silicone, canopy glue, etc., is suitable

for bonding. The light is equipped with an integrated thermal fuse, which shuts off at 65°C and automatically reactivates after cooling. The thermal design is intended for use as a strobe light. When used as a continuous light or with an increased duty cycle, damage may occur if the fuse does not trip quickly enough.

Technical Specifications:

• Electrical: 24W rated power, 8(12)V, 2A
• Beam angle: >160°
• Luminous intensity: ~600 lumens RED
• Luminous flux: ~1000 lumens GREEN
• Luminous intensity: ~1700 lumens WHITE
• Mounting pin dimensions: 15 mm diameter x 48 mm
• Light cap dimensions: Round 15x10mm, Cylinder 15x15mm
• Note: When using the round cap, you may need to sand the chip slightly on the sides.
• Overall dimensions: D15mm, 59mm length
• Weight: 10g (without cable)

Included in delivery:
