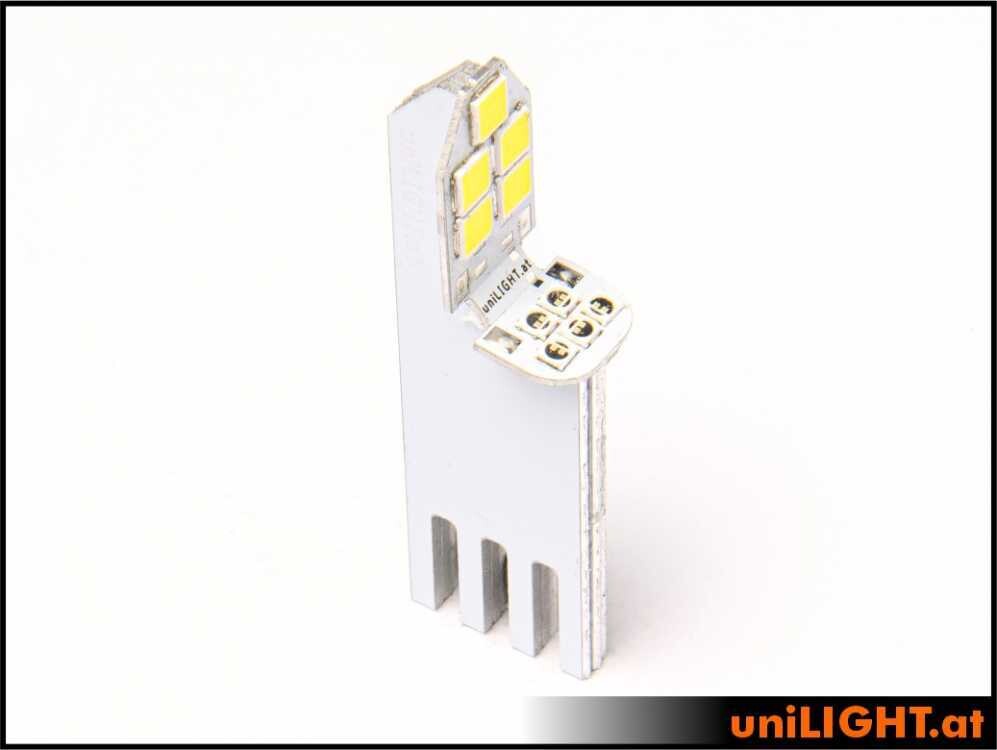

The RECESSED (FLUSH-MOUNTED) light series is designed for direct installation within the wing, provided that cutouts and covers matching the wing’s shape are already in place. Therefore, no covers are included; these are formed by the wing itself. This method of installation within the wing’s geometry is becoming increasingly common; the more modern the aircraft, the more frequently this type of installation is used.

With this series, we can now offer position lights as well as combined position and strobe lights for custom installation. As usual, these DUAL lights include a high-quality position light and an extremely powerful strobe light. The beam angles are determined not only by the 120° standard but also by the mounting plate.
The series is available in 7mm, 10mm, and 15mm versions, each with increasing power output corresponding to the size and weight.

Technical Specifications:

• Electrical: 32W reference power with x2 technology, 8V/12V, 0.6+2.2A
• Beam angle: 120°
• Luminous intensity: ~190 lumens RED
• Luminous intensity: ~300 lumens GREEN
• Luminous intensity: ~2000 lumens WHITE
• Dimensions: 22x69x15mm
• Weight: 12 g (without cable)

Included:

Includes 1m silicone connection cable, fully assembled.
