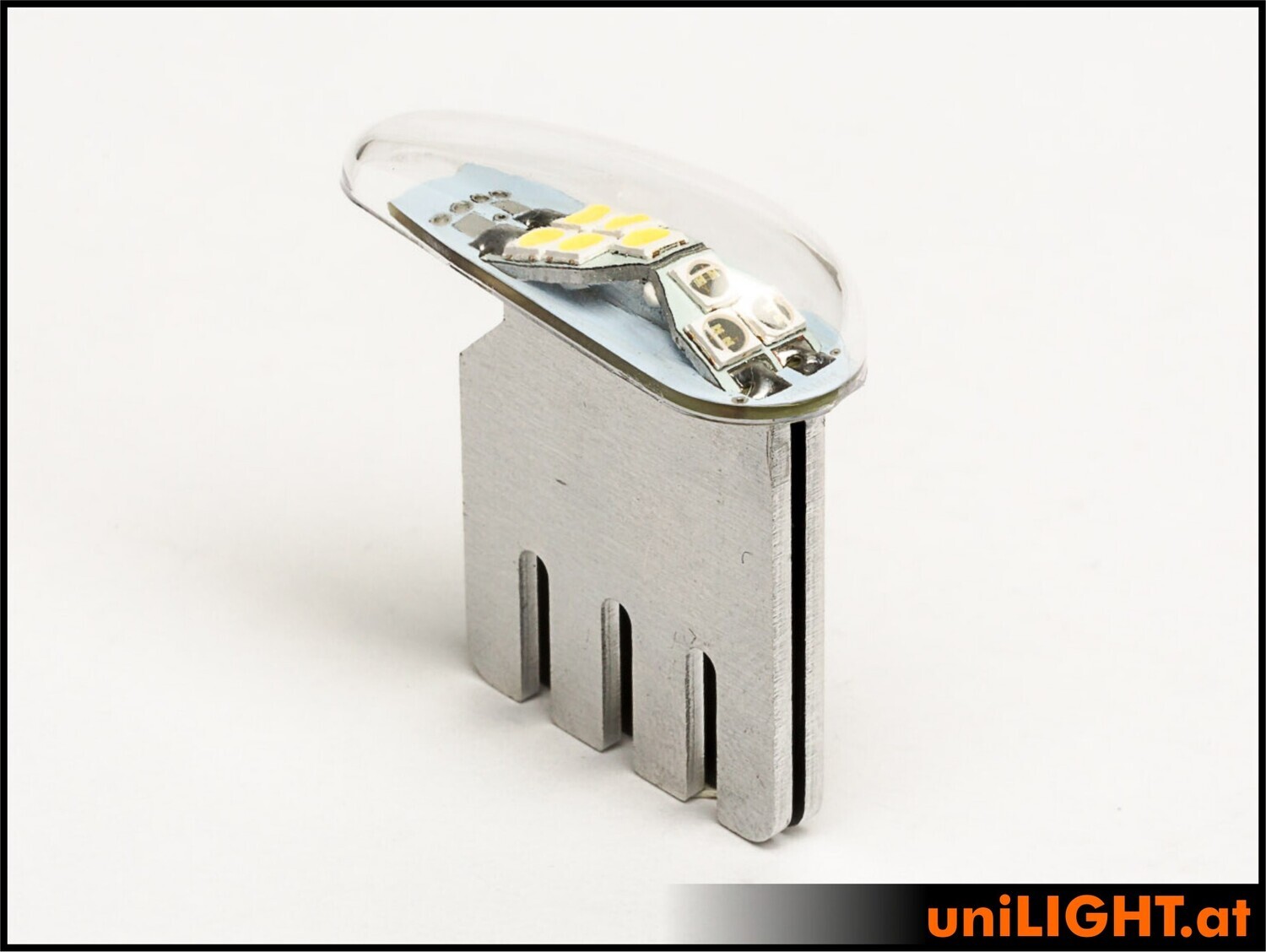

A new generation of compact and extremely powerful position lights with an integrated strobe!

The innovative, forward-angled design ensures optimal forward illumination from the position light and side illumination from the strobe. Maximum visibility and minimal spill, just like the originals.

The extremely compact design allows for integration into both small models and large-scale models.

The package includes a highly transparent and extremely shatter-resistant cover made of injection-molded polycarbonate. The cover must be glued to the model along with the light module.

Technical Specifications:

• Electrical: 4.5Wx2 RED/GREEN and 7.5Wx2 WHITE (reference power, 8V/12V)
• Current: 0.35A RED/GREEN, 0.6A WHITE
• Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
• Luminous intensity: ~100 lumens RED
• Luminous flux: ~190 lumens GREEN
• Luminous flux: ~600 lumens WHITE
• Dimensions: 12.5x38x30mm
• Weight: 7g (without cable)

Included:

Includes 1m silicone connection cable, fully assembled with thermal fuse and high-quality polycarbonate cap

Notes:

Specifications regarding reference performance are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
