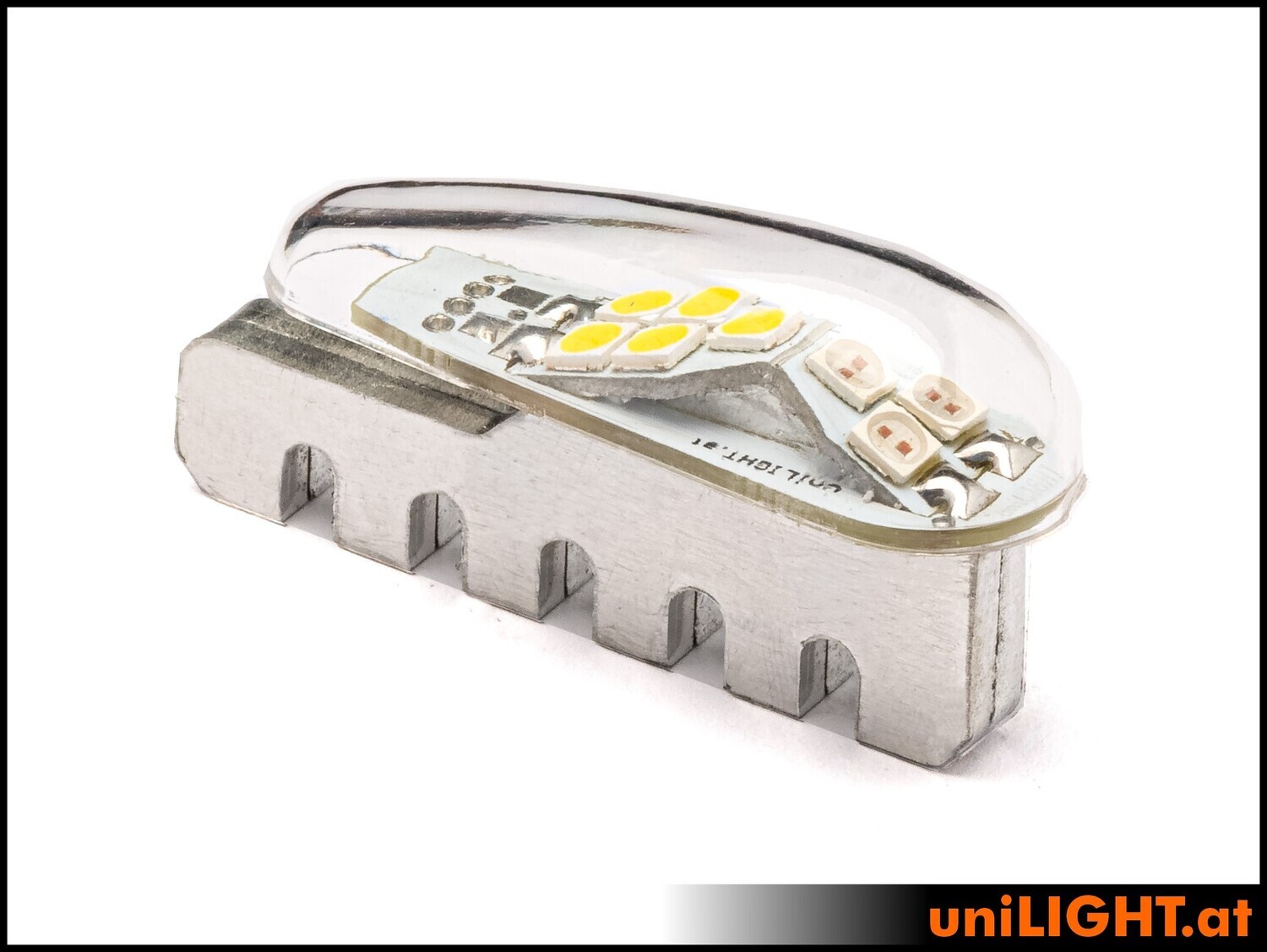

Very compact and powerful 12mm series marker light with built-in flash!

An innovative, angled design ensures optimal forward illumination from the marker light and side illumination from the flash. Excellent visibility and minimal spill light, just like the real thing. The extremely compact design integrates easily even into small models and where space is very limited.

The package includes a highly transparent and extremely shatter-resistant cover made of injection-molded polycarbonate. The cover must be glued to the model along with the light module.

Technical Specifications:

• Electrical: 3.5Wx2 RED/GREEN and 7.5Wx2 WHITE reference power, 8V/12V
• Current: 0.3A RED/GREEN, 0.6A WHITE
• Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
• Luminous intensity: ~70 lumens RED
• Luminous intensity: ~150 lumens GREEN
• Luminous intensity: ~600 lumens WHITE
• Dimensions: 12x14x21mm
• Weight: 2g (without cable)

Included:

Includes 1m silicone connection cable, fully assembled with thermal fuse and high-quality polycarbonate cap

Notes:

Specifications regarding reference power are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot accept any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
