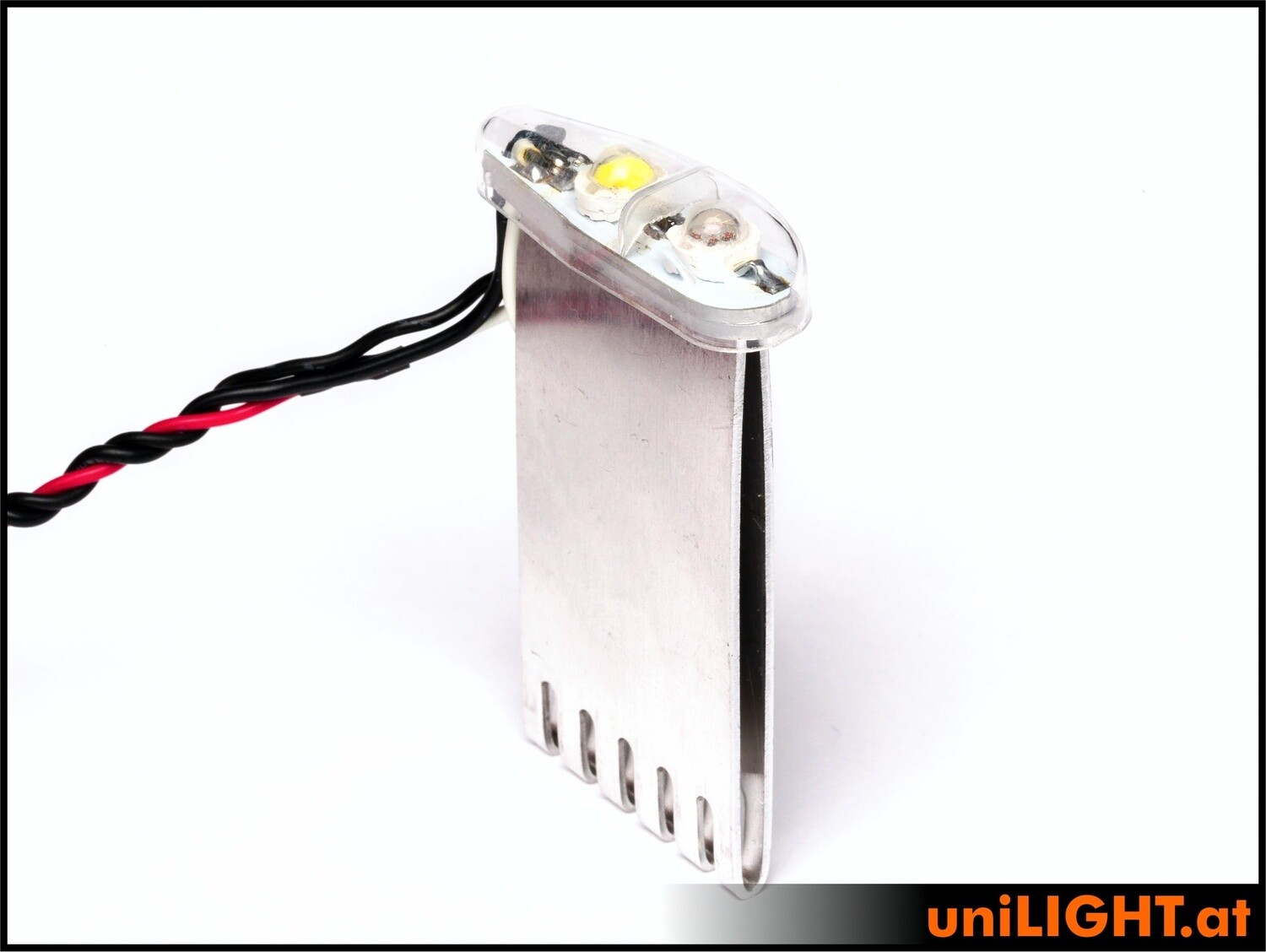

Powerful position and strobe lights in a single housing. The 11mm series profile light has a very slim exterior and looks great even on smaller models. Thanks to its high-performance LED emitters, however, it delivers high light output despite its compact dimensions, making it well-suited for larger models as well. The innovative, inward-shifted cooling surface allows for surprisingly compact dimensions with a uniquely slim design.

The profiled polycarbonate cap is simply snapped on as delivered. It can be painted separately, is highly transparent, and shatter-resistant. Installing the light is surprisingly simple: For a simple surface mount, only a 3x28mm slot is required, allowing the light to be mounted even on small wing tips or fuselage ridges. If desired, the light can also be recessed by up to 4mm for an even more compact design. The cap must be glued in place after final assembly.

Technical Data:

• Electrical: 8Wx2 RED and 8Wx2 WHITE rated power, 8(12)V, 2x0.7A
• Beam angle: >160°
• Luminous intensity: ~200 lumens RED
• Luminous intensity: ~300 lumens GREEN
• Luminous intensity: ~550 lumens WHITE
• Light cap dimensions: 11.5x42.5x10mm, retractable up to 4mm without loss of beam angle
• Overall dimensions: 11.5 x 42.5 x 70 mm
• Weight: 13g (without cable)

Included:
