A new series of compact headlights, just 10 mm thick! Here is the version without a separate heat sink—extremely short!

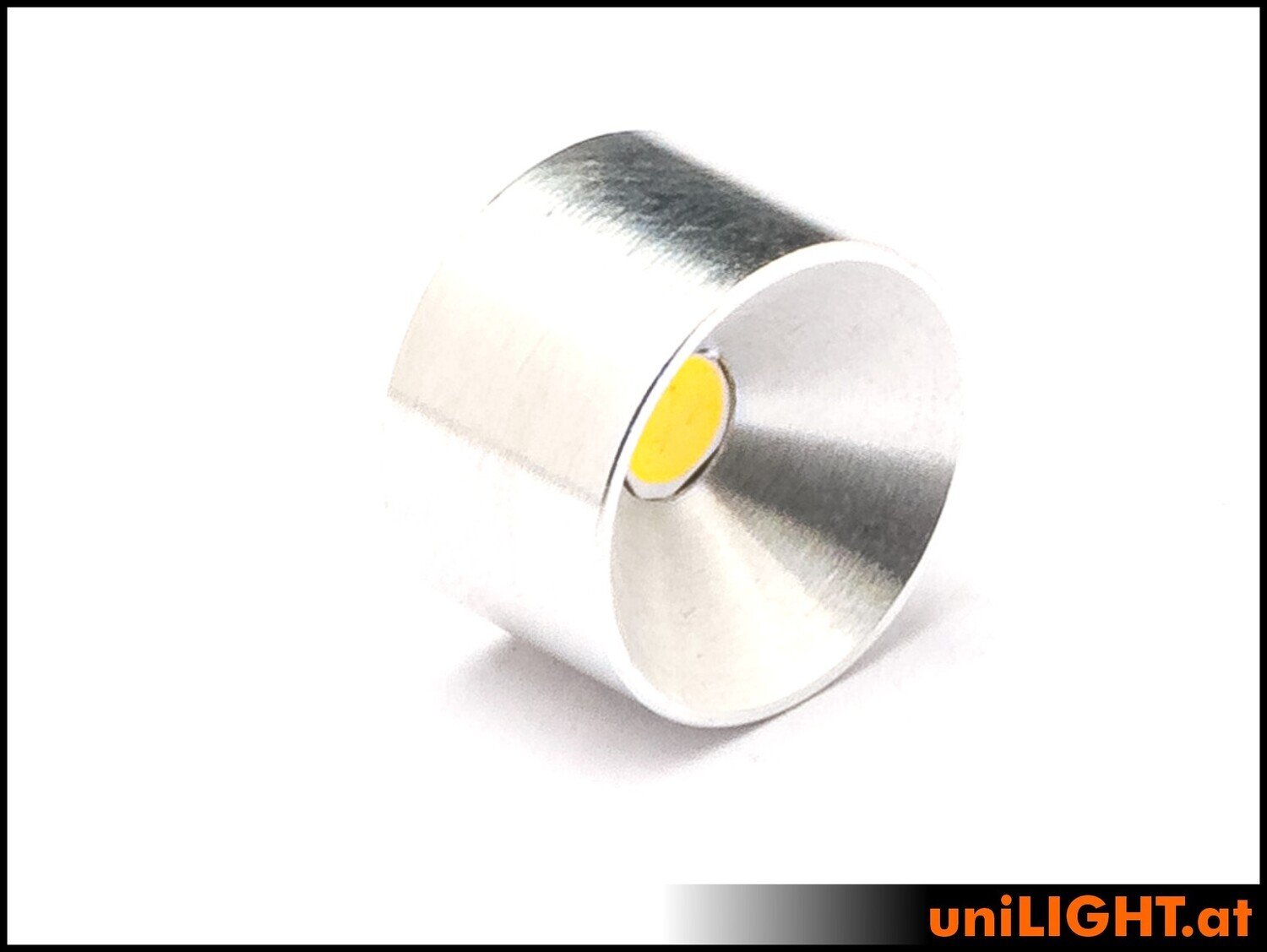

A high-performance LED chip housed in a very compact, CNC-machined 10-mm aluminum reflector—an absolute innovation in this extremely short design without an additional heat sink. A spotlight not much larger than a cherry pit; thanks to its all-aluminum construction, it still delivers an outstanding 130 lumens of light output when used as a landing light, and is highly efficient with x2 technology. This 10mm miniaturized unit with an approximate 100° beam angle is brighter than any other in its size class. Versatile and suitable for the smallest spaces, it fits on the landing gear of small models or, for larger scales, small helicopters and a variety of specialty models.

Direct operation with 2S LiPo (8V); for 3S (12V), an additional resistor must be soldered in. The headlights are designed for use as landing lights; ideally, they should be mounted on a metal surface, which allows for an operating time of more than 2–3 minutes without any issues.

Technical Specifications:

• Power: 1.6W x 2 (reference power)
• Voltage: 8V; use the included resistor for 12V!
• Current: 0.13A
• Beam angle: ~110°
• Luminous flux: ~130 lumens WHITE
• Luminous flux: ~130 lumens WARM WHITE
• Dimensions: D10x6mm
• Weight: 1g (without cable)

Included:
