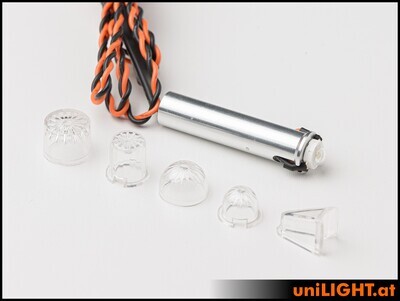

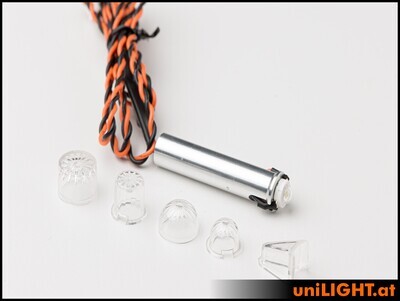

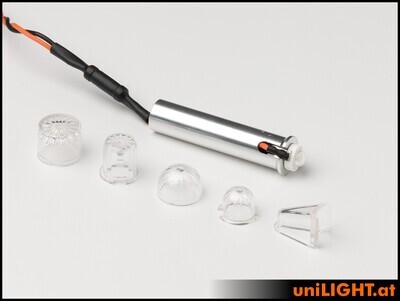

Slim, high-performance LED light with 4W rated power and dual-chip technology for use as a position/navigation light on a wide variety of models. The pin light is delivered pre-assembled and ready for use on a CNC-machined aluminum heat sink, along with 5 high-strength polycarbonate caps for use as desired:

1x 10mm cylindrical cap,
1x 10mm round cap,
1x 13mm cylindrical cap,
1x 13mm round cap
, and 1x 10mm profile extension

. The caps can be glued on separately and painted individually in the model’s color. Any non-evaporating adhesive such as epoxy, Uhu Allplast, Uhu Por, silicone, Canopy Glue, etc., is suitable for bonding. Ideal as a navigation light on all models from 2m to 3.5m. The light is equipped with an integrated thermal fuse, which shuts off at 65°C and reactivates automatically after cooling.

• Electrical: 4Wx2 rated power, 8(12)V, 0.7A
• Beam angle: >160°
• Luminous intensity: ~100 lumens RED
• Luminous intensity: ~140 lumens GREEN
• Luminous intensity: ~200 lumens WHITE
• Mounting pin dimensions: D10x45mm, flange to cap D12mm
• Light cap dimensions: D10x12.5mm, flange to bracket D12mm
• Overall dimensions: D10/12 mm, 57.5 mm length
• Weight: 5g (without cable)

Contents:

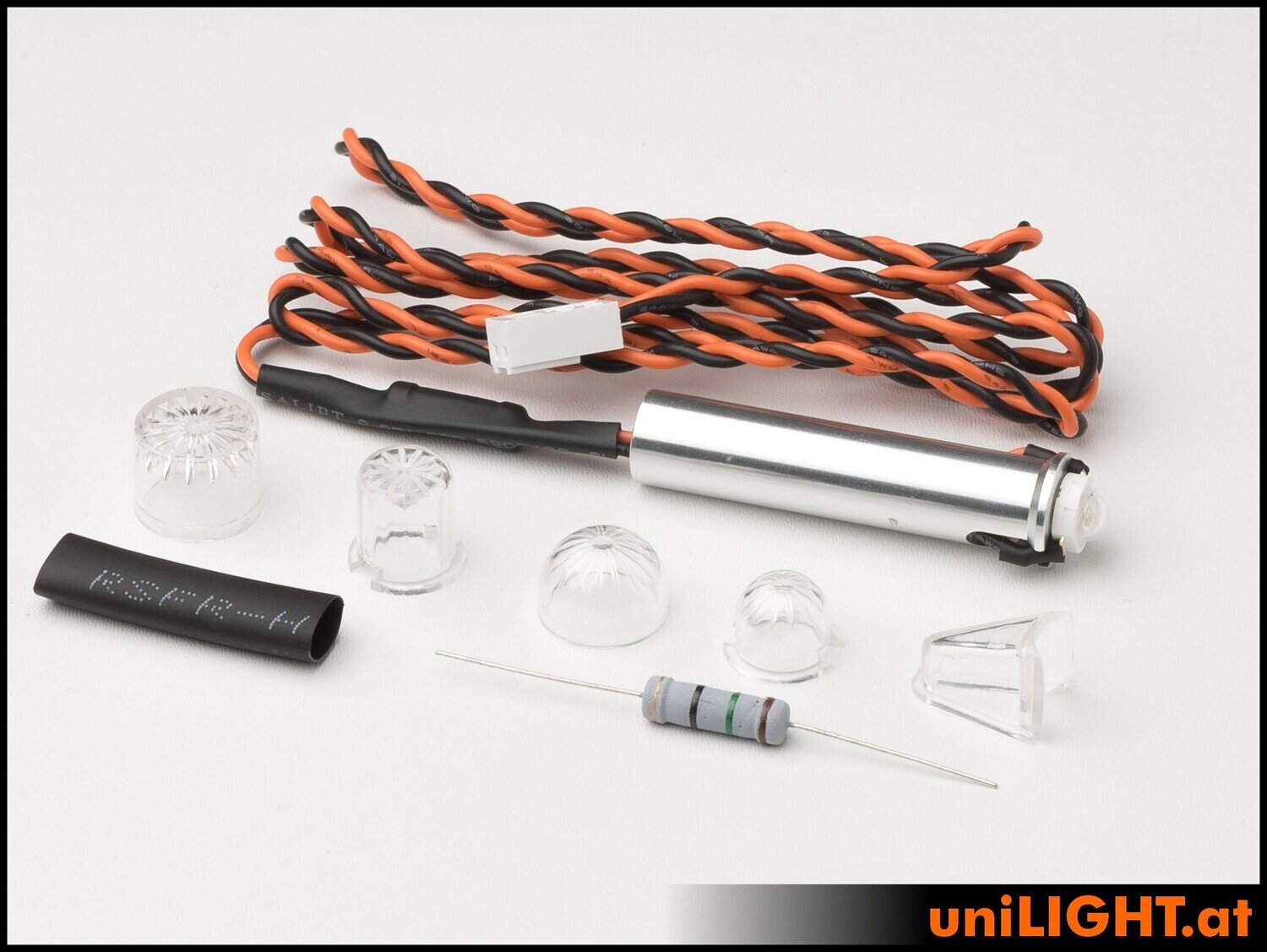

Includes 1m silicone cable and pre-assembled series resistor for 2S and resistor for 3S, plus a profiled extension cap.

Notes:

Reference performance data is purely a comparative value among the offered light sources. It typically refers to an operating voltage of 12V/3S LiPo and depends on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
