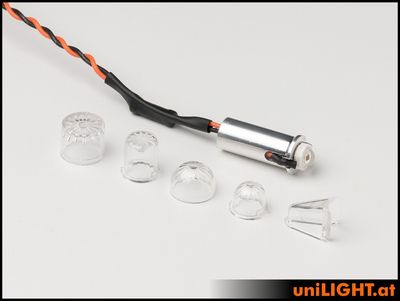

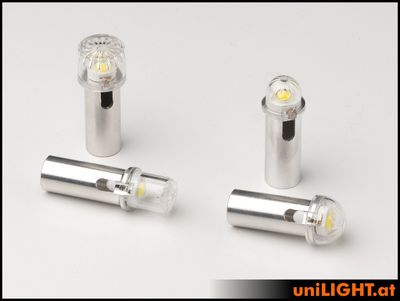

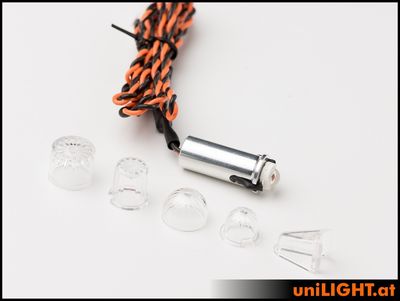

A compact, high-performance light with a 4W reference power rating for strobe operation on small models. The pin lights are pre-assembled and delivered ready for use on a CNC-machined aluminum heat sink; 5 high-strength polycarbonate caps are included for use as needed.
Electrical: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Luminous intensity: ~70 lumens RED
Luminous intensity: ~90 lumens GREEN
Luminous intensity: ~140 lumens WHITE Overall
dimensions: D10x37mm, cap flange D12mm
Weight: 5g (without cable)
Ideal as a strobe light on smaller polystyrene models and helicopters.

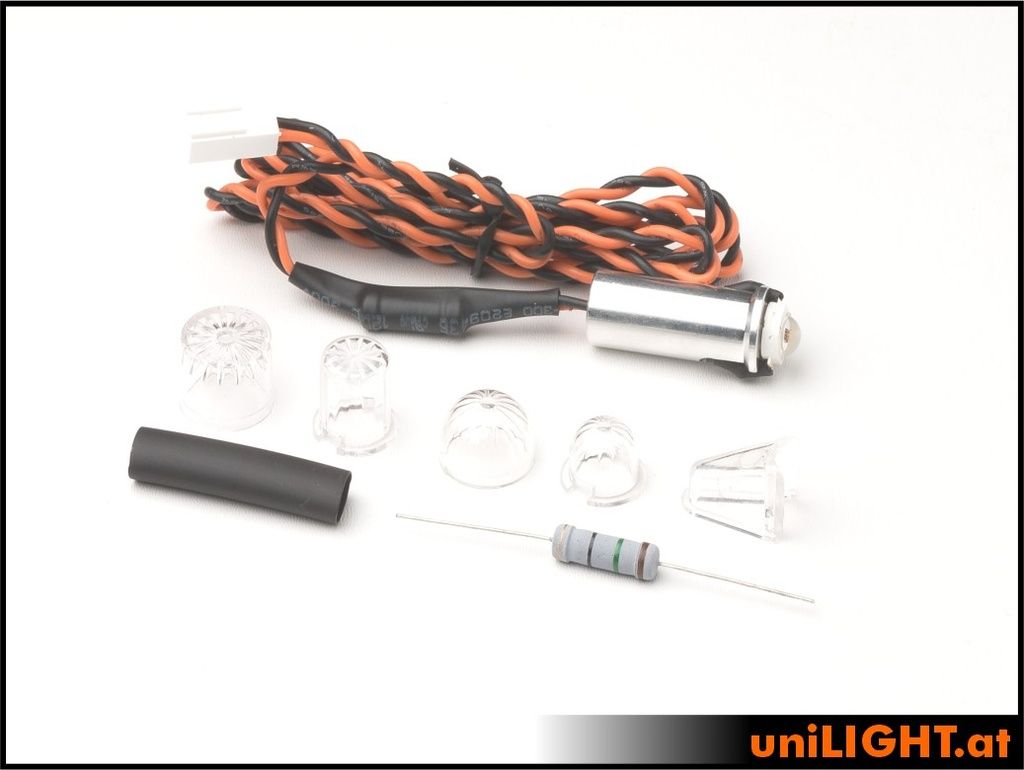

Includes 1m silicone cable and pre-assembled series resistor for 2S; use additional resistor for 3S.
1x 10mm cylindrical cap
1x 10mm round cap
1x 13mm cylindrical cap
1x 13mm round cap
1x profile extension 10mm
| Operating voltage: 2S/8V or 3S/12V with additional resistor |
| Cable length: 1m silicone 0.25mm² |
| Design: Round |
| Function: Navigation/position light |
| Dimensions: 10 mm |
The caps can be glued on separately and/or painted in the model’s color before or after installing the light. Any non-evaporating adhesive such as epoxy, Uhu Por, silicone, canopy glue, etc., is suitable for gluing.
Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot assume any liability for overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
