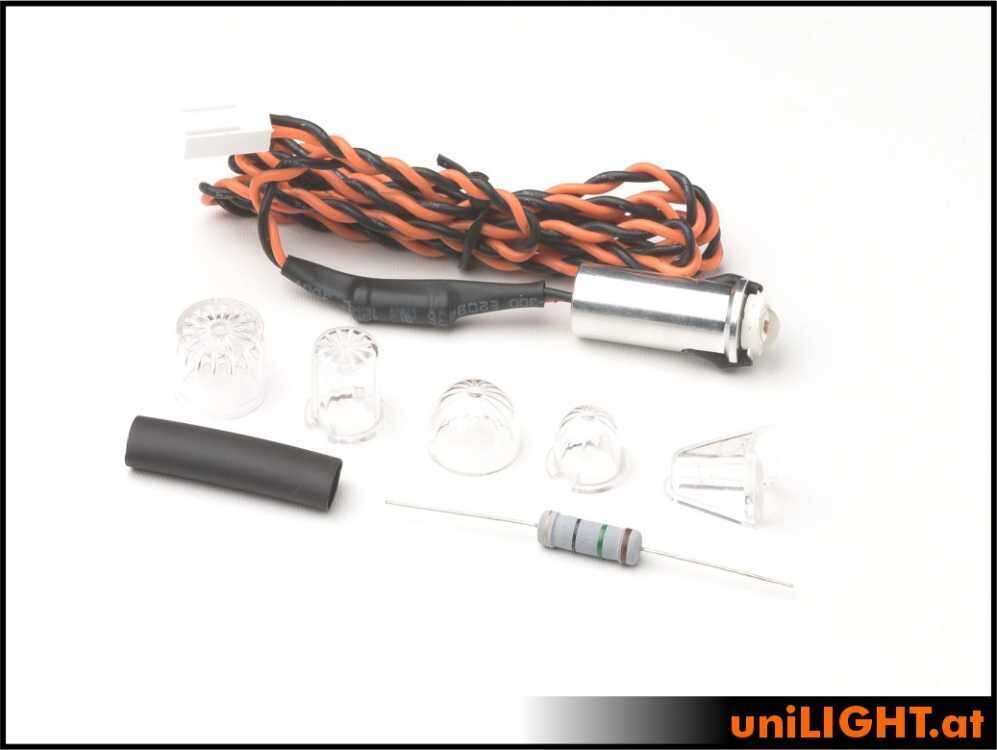

A compact, high-performance light with a rated power of 3Wx2, designed as a navigation light for small and medium-sized models. The penlight is delivered pre-assembled and ready for use on a CNC-machined aluminum heat sink, along with 5 high-strength polycarbonate caps for use as desired:

1x 10mm cylindrical cap,
1x 10mm round cap,
1x 13mm cylindrical cap,
1x 13mm round cap
, and 1x 10mm profile extension

. The caps can be glued on separately and painted individually in the model’s color. Any non-evaporating adhesive such as epoxy, Uhu Allplast, Uhu Por, silicone, canopy glue, etc., is suitable for gluing. Ideal as a strobe light on smaller polystyrene models and helicopters...

Technical Specifications:

• Electrical: 3Wx2 reference power, 8(12)V, 0.2A
• Beam angle: >160°
• Luminous intensity: ~70 lumens RED
• Luminous intensity: ~100 lumens GREEN
• Luminous intensity: ~200 lumens WHITE
• Overall dimensions: D10x37mm, flange to cap D12mm
• Weight: 4g (without cable)

Included:

Notes:

Specifications regarding reference power are purely comparative values between the offered light sources. They typically refer to an operating voltage of 12V/3S LiPo and depend on the light source, operating mode, and technology.

Please note that high-power LEDs can get very hot; temperatures up to 70°C are quite normal. These lights with heat sink mounting are suitable for continuous operation if air convection is possible. Check the operating temperatures after installation. We cannot assume any liability for overheating.

Warning: The LED lights are extremely bright! Never look directly into an LED!
