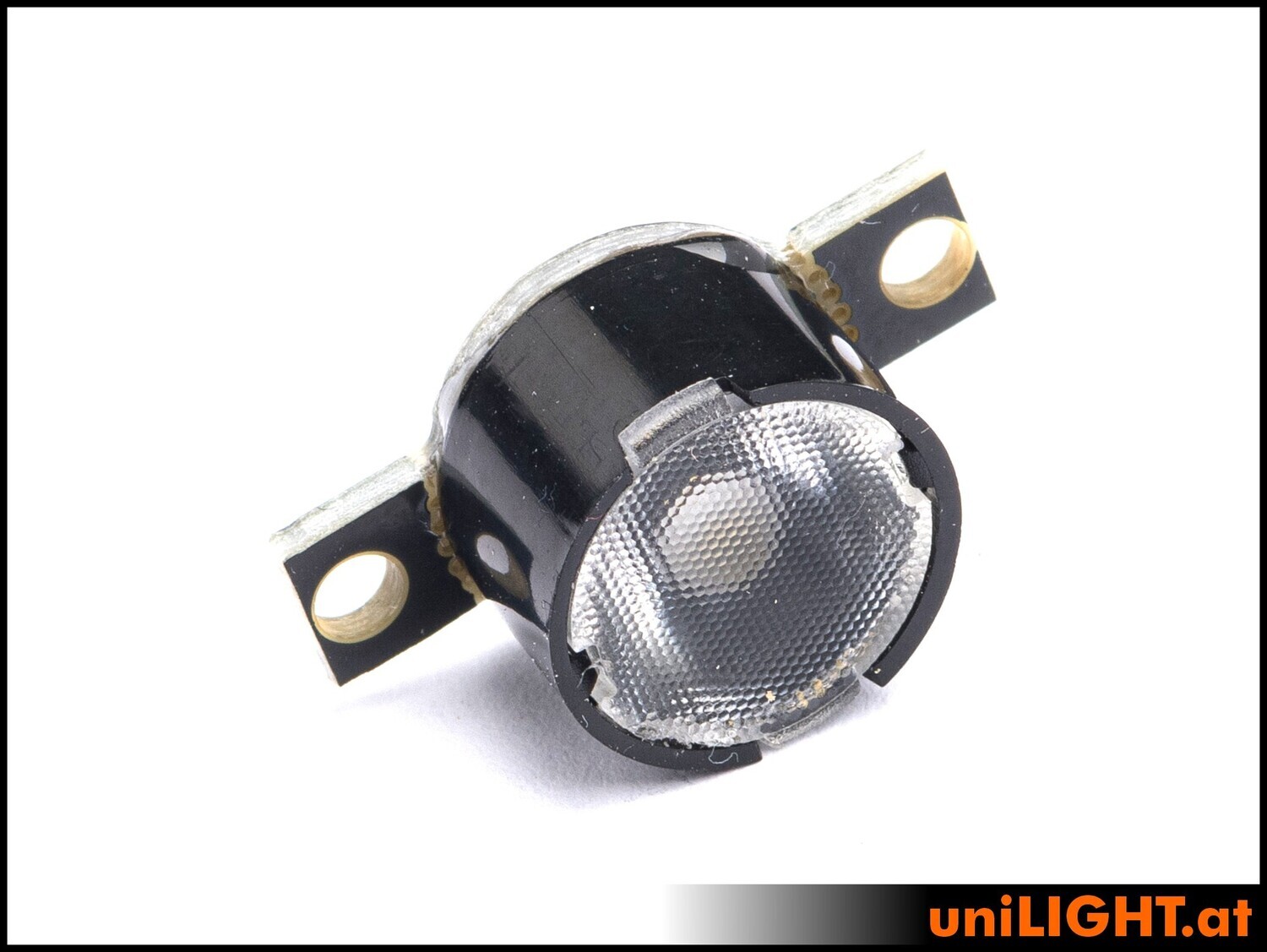

The smallest member of the new ECO spotlight series! This extremely compact 10mm spotlight is the most compact design possible without an external heat sink. As a result, it can only handle a 1W reference power in spotlight mode—but it does so using x2 technology, allowing it to emit approximately 85 lumens at a 20° beam angle. Top brightness for this little guy!

The mounting plate has two tabs that can be easily snapped off if they aren’t needed for installation.


The headlights in this ECO series are generally characterized by decent performance specs and a very good price-performance ratio. The excellent brightness of the ECO headlights is based on effective optics; the available light output is well-focused and directed forward. This makes them appear bright and easily visible even in daylight.

Direct operation with a 2S LiPo (8V); for 3S (12V), an additional resistor must be soldered in (included in the package). Ensure sufficient cooling airflow during operation. Our headlights are optimized for use in model aircraft and should only be operated for approximately 3 minutes at a time with a fully charged battery without additional cooling—intended for use as landing lights! For other applications, improved cooling is of course possible at any time.

Technical Specifications:

• Power: 1W x 2 (reference power)
• Voltage: 8V; use the included resistor for 12V!
• Current: 0.08A
• Beam angle: ~20°
• Luminous flux: ~85 lumens WHITE
• Luminous flux: ~85 lumens WARM WHITE
• Dimensions: D10x8mm
• Weight: 1g (without cable)

Included:
