Description:

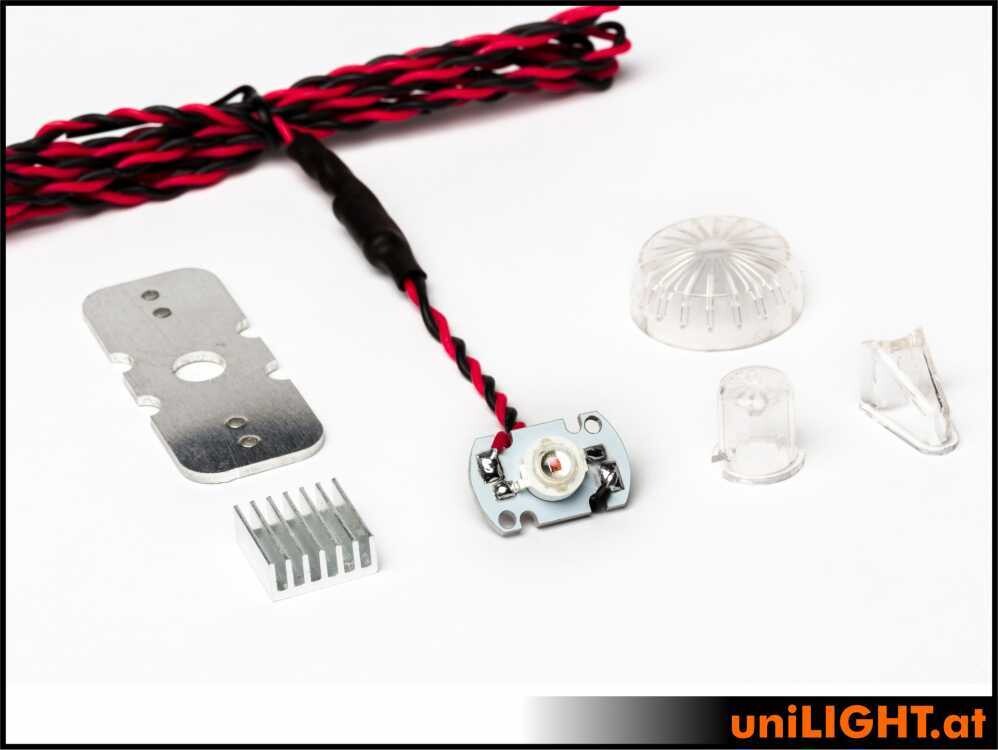

8W spot light with two crystal-clear polycarbonate caps (10 mm and 24 mm). The module is delivered fully wired with an aluminum mounting plate for cooling and installation. A small heat sink for alternative installation with minimal dimensions is also included. During prolonged operation, please be sure to monitor temperatures; for the 8W module, we recommend using both the mounting plate AND the heat sink.

Simply attach the desired cap and the heat sink using superglue. The 10mm cap serves as a light diffuser for concealed installation behind a GRP wall, while the 24mm cap can be used for external mounting, as it completely covers the module. A polycarbonate profile extension is included as an accessory, which can optionally be attached to the 10mm cap.

Technical Specifications:

• Electrical: 8W reference power, 8(12)V, 0.7A
• Beam angle: >160°
• Luminous intensity: ~90 lumens RED
• Luminous intensity: ~150 lumens GREEN
• Luminous intensity: ~200 lumens WHITE
• Base plate dimensions: 20x50mm
• Dimensions of auxiliary heat sink: 15x15x6mm, self-adhesive
• Small cap: D10x12mm + profile extension
• Large cap: D24x10mm
• Weight: 8g (without cable)

Package contents:
